High Resolution Inkjet Printer

Inkjet printer can help to reduce production cost by removing labels / stickers and reducing stock on pre-printed packaging / labels. It prints using computer from creating templates, sending data in realtime through LAN / WLAN from your existing ERP systems. It is using ink-based system and can be printed on almost any surface materials such as cardboard, plastics and even a metal surface. With minimal / zero maintenance needed compare to other inkjet method and ease of use interface, make these printing system more favorable to all of industries. Available in 3 type of ink: water based, oil based, solvent based and uv based.

There are 2 type of high resolution inkjet printers where it can have resolution from 180 dpi to 600 dpi: TIJ / Thermal Inkjet Printers & Piezo Inkjet Printer. Each of the inkjet type has it's own benefit and capabilities.

Products:

• Books and Magazines
• Cosmetic Packaging
• Food (instant noodle, chocolate, etc)
• Medicine
• Carton Boxes & Cardboard
• Pipes & Cables
• Wooden Crater / Pallet
• Etc

Type of inkjet printers:

• TIJ / Thermal Inkjet Printer(up to 6 heads): Highest resolutions, use simple cartridge ink, and can be connected with up to 6 heads or more.
  • Dotjet DJ45 Plus
  • Loogal ECJET 6
  • Loogal SAJET 4
• PIJ / Piezo Inkjet Printer: Best resolution in the market, using largest single head with print height up to 70 mm making it the easiest inkjet printer to print larger surface area.
  • Dotjet DJ340
  • Dotjet DJ2400

TIJ PRINTERS / Thermal Inkjet Printers

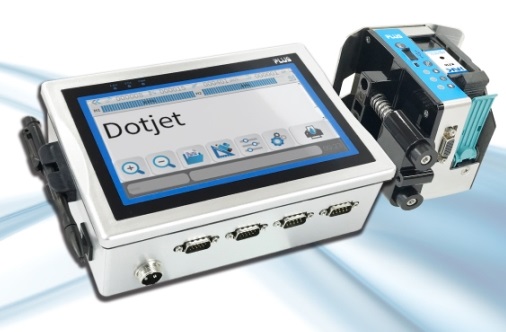

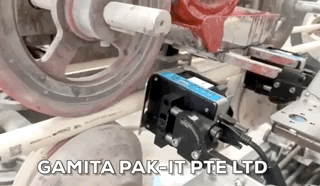

DotJet Thermal Inkjet Printer DJ45 Plus up to 2 heads / 1 inch (25.4 mm) HP TIJ2.5 technology provides the best coding solution. 7” touch screen with DotW_QT software make the template creation simple to add and place print fields. The anti-shock mechanism is the print head standard equipment. Features: Print Head Connection Capability: One controller is available for controlling two different type of print heads allowing combination. User-friendly and versatility operation software. Diverse connection in connectivity. Gather actionable data from across your production. SPECIFICATIONS: Model Dotjet DJ45 Plus Print System HP TIJ 2.5 Print Resolution 300 dpi Max. Print Height 12.7 mm / 25.4 mm (2 heads) Max. Print Speed 60 Mtr/min (Water based ink), 90 Mtr/min (Solvent Ink) Connectivity Ethernet, RS232, USB, Encoder, Photocell Display 7 inch touch screen Supported Print Contents Text, Image, External Data, Counter, Barcode, Database Connection Supported Barcode Barcode 1D: EAN8,EAN13,EAN128,CODE25,CODE39,CODE128, etc Barcode 2D: PDF47, QRCODE, DATAMATRIX, etc Power 110-220VAC 50/60Hz For more information, please click here.

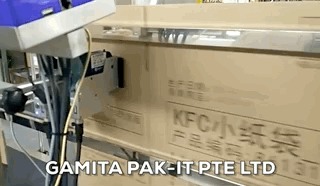

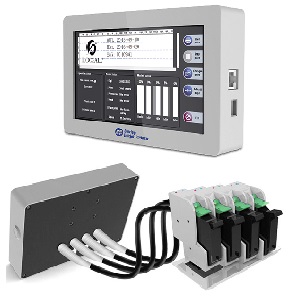

Loogal Thermal Inkjet Printer ECJET 6 up to 6 heads / 3 inch (76.2 mm) EC Series Inkjet Printer is high resolution printer with touch screen developed on HP print tech, featured as high resolution and high print speed. It can control 1-6 print heads. It can print variable data including text, batch number, date of manufacture & expire date and image, matching with various kinds of production lines. Features: Operation interface with 7 inch touch screen make it easier to operate. High system integration, small size, less component and easy to install and maintain. Full metal shell, industrial design and stronger. Take HP original driving board to make print effect higher quality. SPECIFICATIONS: Model Loogal ECJET 6 Print System HP TIJ 2.5 Print Resolution 300 dpi ~ 600 dpi (Adjustable) Max. Print Height 12.7mm ~ 76.2mm (6 heads) Max. Print Speed 45 Mtr/min (600x600 dpi), 90 Mtr/min (300x150 dpi) Connectivity USB, Photocells, Encoder, Warning Light Display 7 inch touch screen Supported Print Contents Text, Image, External Data, Counter, Barcode, Database Connection Supported Barcode Text, Image, Data, Counter (Barcode not supported) Power 120W, 110-220VAC 50/60Hz For more information, please click here.

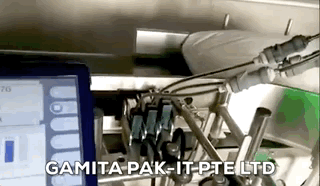

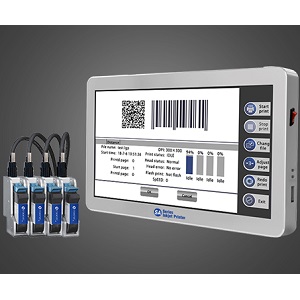

Loogal Thermal Inkjet Printer SAJET 4 up to 4 heads / 2 inch (50.8 mm) SAJET is the third generation high resolution printer developed by Loogal based on HP TIJ2.5 tech, which adopts the most advanced control tech of LGCS . Users are easy to send command through interface to control printers and print content. SAJET can support all fonts including True Type. What you edit and see is what will be printed out. Support various kinds of languages. The print content is not limited in the font ,size, lines , which is a breakthrough for traditional printers. Features: Easy operation,no need of any training. Full metal shell,industrial design and stronger. Take HP origial driving board to make print effect higher quality. Wireless print head verify tech , more stable and capable. SPECIFICATIONS: Model Loogal SAJET 4 Print System HP TIJ 2.5 Print Resolution 300 dpi ~ 600 dpi (Adjustable) Max. Print Height 12.7mm ~ 50.8mm (4 heads) Max. Print Speed 60 Mtr/min (600x300 dpi), 120 Mtr/min (300x150 dpi) Connectivity WIFI, USB, Photocells, Encoder, Warning Light Display 10 inch touch screen IPC Supported Print Contents Text, Image, Data, Counter, Barcode, Database Connection Supported Barcode Barcode 1D: EAN8,EAN13,EAN128,CODE25,CODE39,CODE128 Barcode 2D: PDF47, QRCODE, DATAMATRIX Power 110-220VAC 50/60Hz For more information, please click here.

PIJ PRINTERS / Piezo Inkjet Printers

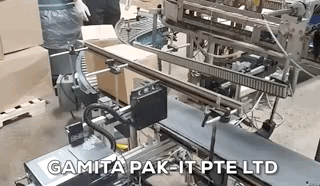

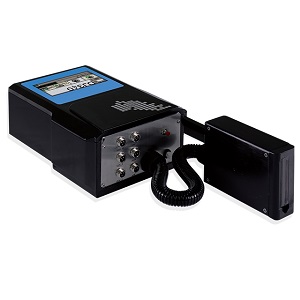

DotJet Piezo Inkjet Printer DJ340 Compact and robust, high resolution inkjet printer. The best solution of coding and marking requirement. Easy and reliable exceed your expectation. Features: Standalone: Print height through 1mm to 70mm on variety of substrates. Flexibility in print message creation. Advanced Ink Delivery System: Automatically ink prime, drain even one button can implement purging SPECIFICATIONS: Model Dotjet DJ340 Print System Piezo Inkjet System Print Resolution 185 dpi Max. Print Height 70 mm (PT510 Head) Max. Print Speed 45 Mtr/min (185x200 dpi) Connectivity Ethernet, RS232, RS485, Encoder, Photocell Display 4.3 inch touch screen Supported Print Contents Text, Image, External Data, Counter, Barcode, Database Connection Supported Barcode Barcode 1D: EAN8,EAN13,EAN128,CODE25,CODE39,CODE128, etc Barcode 2D: PDF47, QRCODE, DATAMATRIX, etc Power 110-220VAC 50/60Hz For more information, please click here.

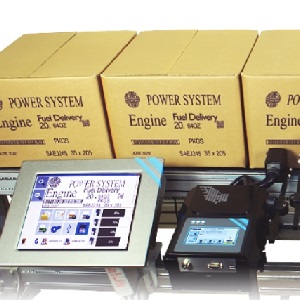

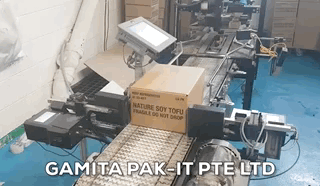

DotJet Piezo Inkjet Printer DJ2400 up to 6 heads / 3 inch (76.2 mm) The widest printing format on the market that still give a remakable high resolution for highest quality and clear print result. Equiped with the most powerfull controller that able to connect with up to 4 print head system on single controller. The controller give much flexibility for operator to manage each printhead over the network. Give you transparency into your packaging line operation and manage the print job remotely. Up to 70 mm of print height give wide format print design, excelent for printing big size of products such as corrugated board / carton boxes, large aluminium panel, plastics containers etc. Features: Print Head Connection Capability: One controller is available for controlling four different type of print heads allowing combination. Advanced Ink Delivery System: Automatically ink prime, drain even one button can implement purging. Gather actionable data from across your production. SPECIFICATIONS: Model Dotjet DJ2400 Print System Piezo Inkjet System Print Resolution 185 dpi Max. Print Height 70 mm (PT510 Head) Max. Print Speed 60 Mtr/min (185x200 dpi) Connectivity Ethernet, RS232, RS485, Encoder, Photocell Display Controller: 12 inch LCD touch screen Print head system: 4.3 inch LCM module Special Features Up to 4 printhead controll, Cloud Printing Solution Supported Print Contents Text, Image, External Data, Counter, Barcode, Database Connection Supported Barcode Barcode 1D: EAN8,EAN13,EAN128,CODE25,CODE39,CODE128, etc Barcode 2D: PDF47, QRCODE, DATAMATRIX, AZTEC CODE etc Power 120W, 110-220VAC 50/60Hz For more information, please click here.
